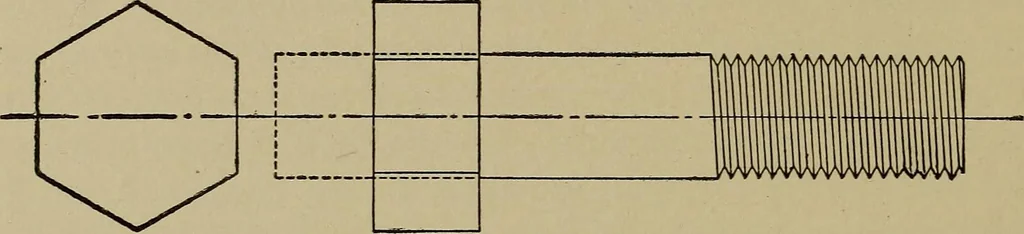

or distance be-H = Height of nut (inches) tween similar points on adja- / = Initial axial tension (lbs.) cent threads, measured paral- k = Allowable bearing pressure on lei to axis (inches) surface of thread(lbs.per sq.in.) g = Fiber stress (lbs. per sq. in.) L = Lead, or distance nut advances pp =… … Fig. 16. Bolt Fig. 16. A stud is a bolt in which the head is replaced by a thread;or it is a cylindrical bar threaded at both ends, usually having a smallplain portion in the middle, Fig. 17. The object of bolts and studsis to clamp machine parts together, and yet permit these same partsto be…
