Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 65

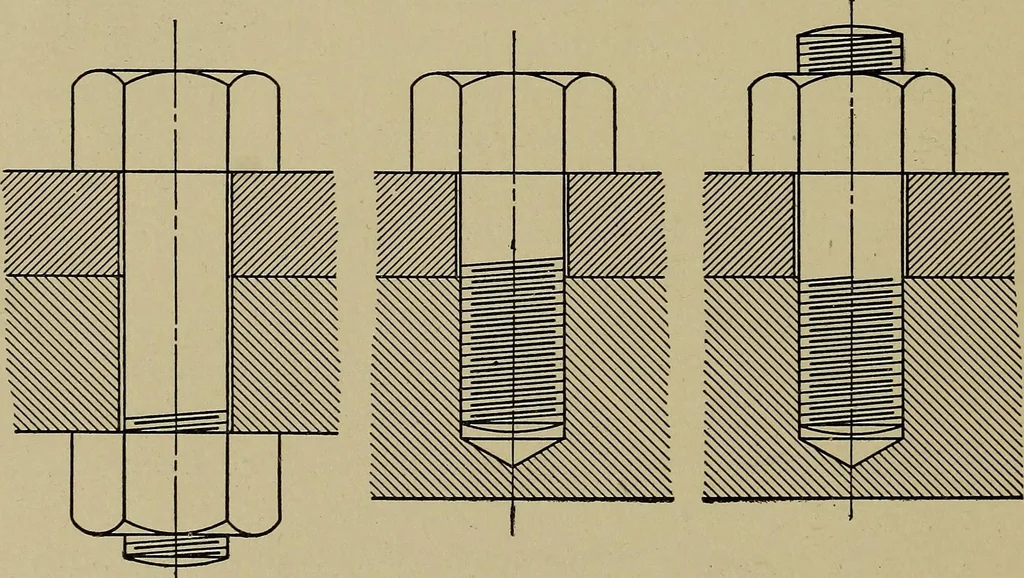

Fig. 23. Modification of Square Thread thread, which, although giving less bursting pressure on the nut, isnot as strong as the V-thread for a given length, since the total sec- … Fig. 26. Stud Fig. 24. Through Bolt Fig. 25. Tap Bolt tion of thread at the bottom is only \ as great. If the pressure isto be transmitted in but one direction, the two types may be com- MACHINE DESIGN 55 bined advantageously to form the buttress thread of the proportionsshown in Fig. 22. Often, as…
