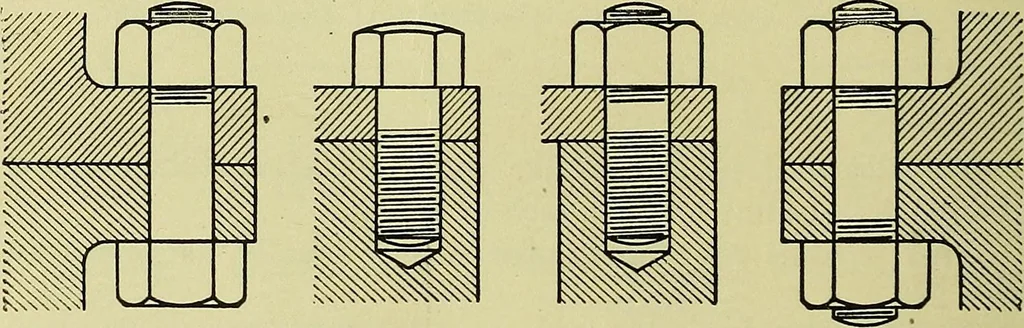

FiG. 290. Coil Spring Showing Actual and ConventionalEepeesentation … BOUT CAP SCREW STUD STUD BOLT Fig. 291. Common Screw Fastenings ished heads have the same sizes as the finished nuts. A table ofstandard sizes may be found in an engineering handbook.United States Standard threads are used on these bolts.
