Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 69

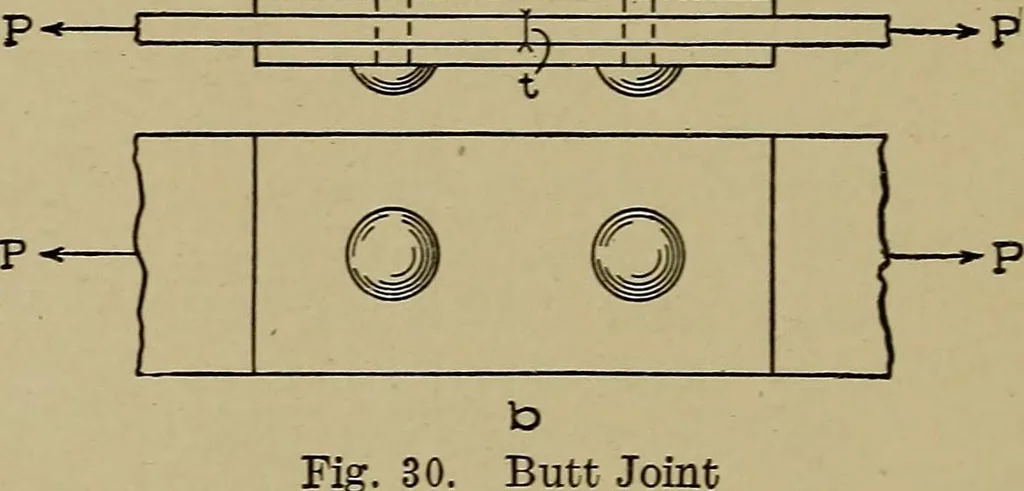

Fig. 29. Lap Joint Fig. 30. value depends on the area of the cross-section and on the workingstrength of the material. Then, since the area of the cross-sectionequals 0.7854 d2, the shearing strength s of one rivet isfor single shear s = 0.7854 d2 Ss (17) for double shear s = 1.5708 d? Ss (18) When…
