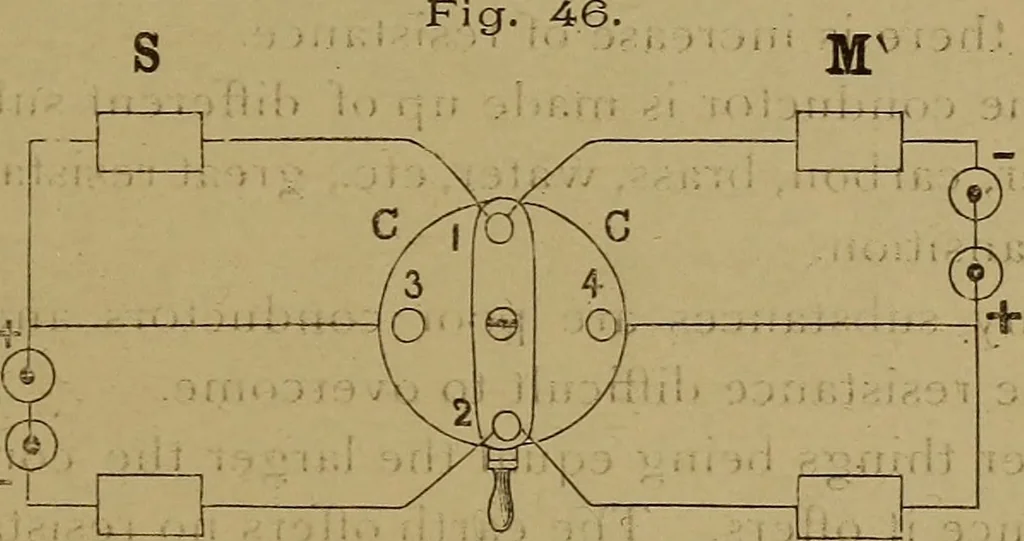

operate at the same time, so that the operator can alwrivsjudge how both lines are working. £. Local Circuit Changer.—1. What is the ohject of the local circuit changer? It is often important to change a set of instruments to a dif-ferent line. For example: Suppose a sounder is placed onone… … A M It In Fig. 46 M and Mare the relays S the sounder and E the register; A and Av are the local batteries; B is a small button switch, having four connecting points, numbered 1, 2, 3, 4. When the button connects 1 and 2 the relay M works the under S, and Mthe register. When it connects 3 and 4 so…
