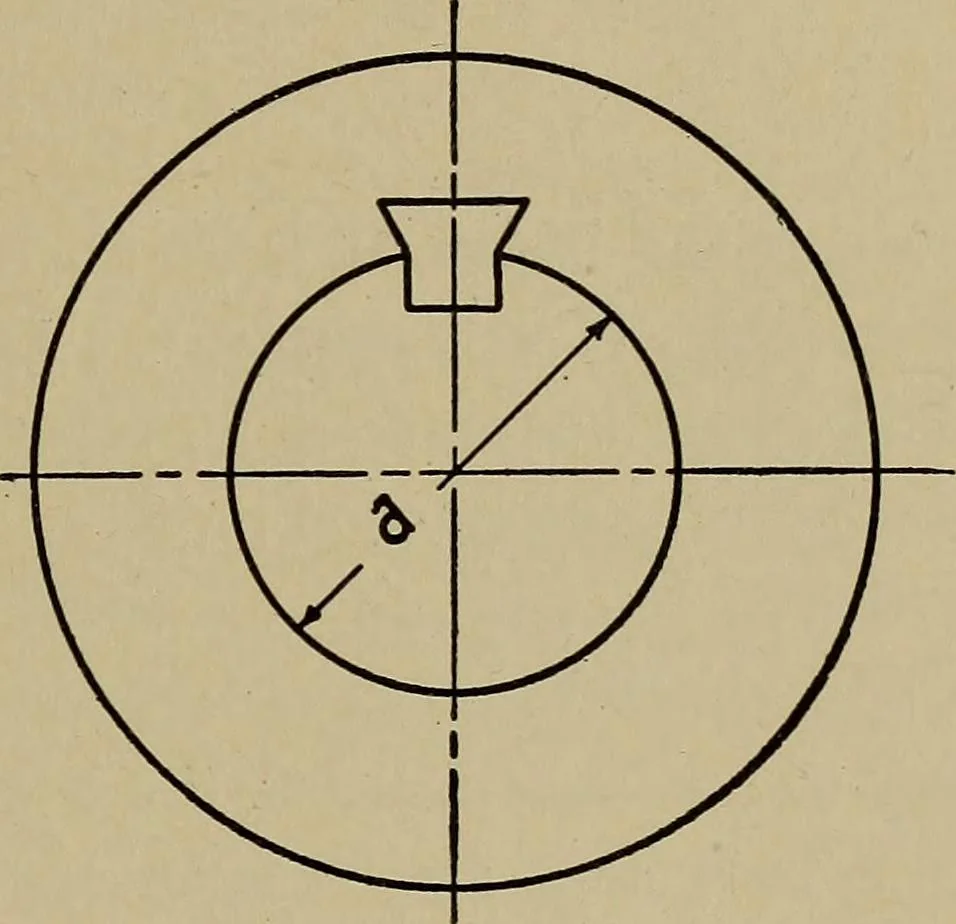

ear off thekey along the line AB, but tends to crush both the portion in theshaft and in the hub. The shearing strength along the line ABis LWSa. Equating external force to internal strength 1™ = LWSB or W = 2 PR dLSB (24) The crushing strength is, of course, that due to the weakermetal, whether in… … Fig. 36. Gibbed Key The proportions of the key must be such that the equations as above,both for shearing and for crushing, shall be satisfied. Practical Modification. Pins across the shaft can be used todrive light work only, for the shearing area cannot be very large.A large pin cuts away too…
