Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 85

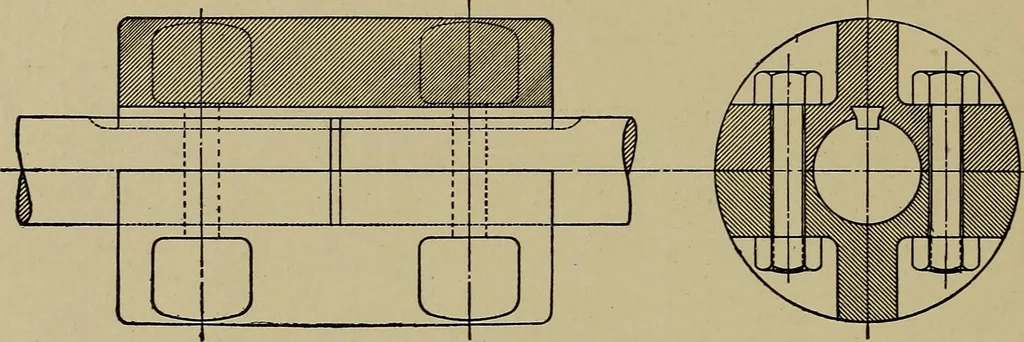

ts clamp the coupling tightly on the shaft and providerigidity, but the key does the principal amount of the driving. Thebolt sizes, in these couplings, are based on judgment and relation tosurrounding parts, rather than on theory. Practical Modification. All couplings must be made with careand… … Fig. 43. Clamp Coupling the lathe, and the joint faced off. Thus the joint will be true to theaxis of the shaft; and, when it is clamped in position by the bolts,no springing out of line can take place. A flange F, Fig. 42, is sometimes made on this form of coupling,in order to guard the bolts. It…
