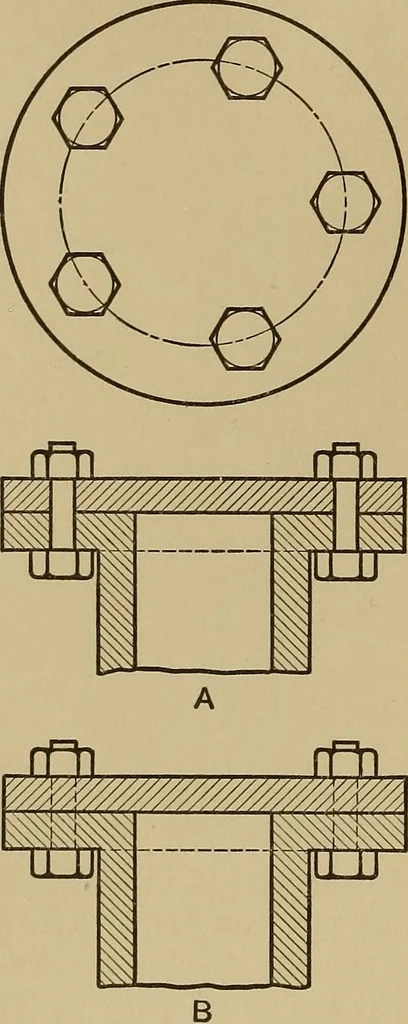

, etc., of a wheel, but not inclosed parts like shafts, rods,bolts, keys, etc. A bushing being both an inclosed and inclos- 102 MECHANICAL DRAWING ing part might or might not be sectioned, individual judgmentdictating the method here as elsewhere. This gear has fivearms, and the line AB cuts…
