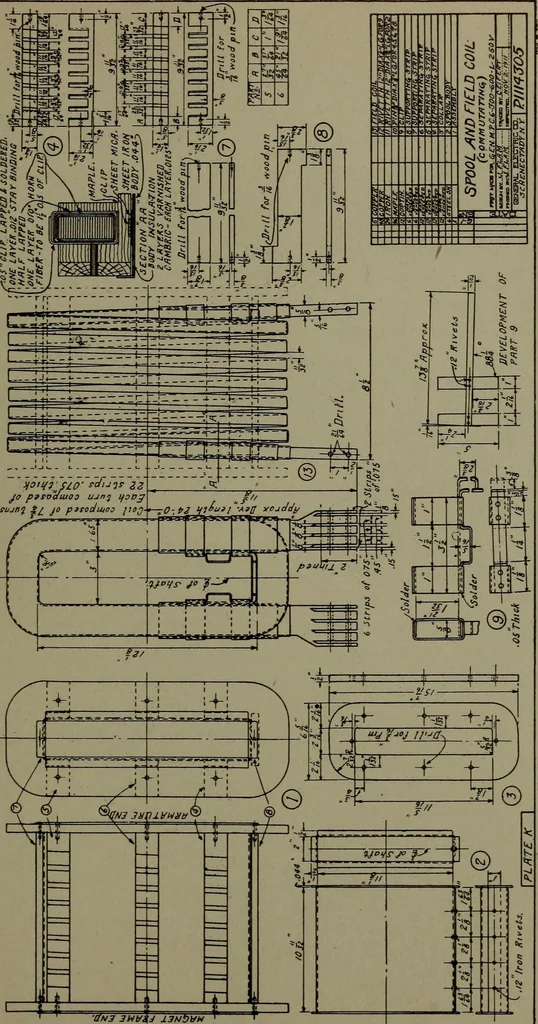

assembly of two adjacentpoles is drawn to show the location of the flanges, Figs. 19 and 20.This is for the benefit of the assembler and is as necessary as theother views of drawings for the man who builds the parts. PLATE K. COMMUTATINQ FIELD COILS AND SPOOLS The commutating fields are connected… … 248 MACHINE DRAWING Commutating Coil. The coil is made up of several turnsof copper each made up of twenty-two laminations of thin copperstrip five-eighths of an inch wide and seventy-five-thousandthsof an inch thick, Fig. 13. The coil is insulated by separating theturns with separating strips of…
