Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)
Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 49

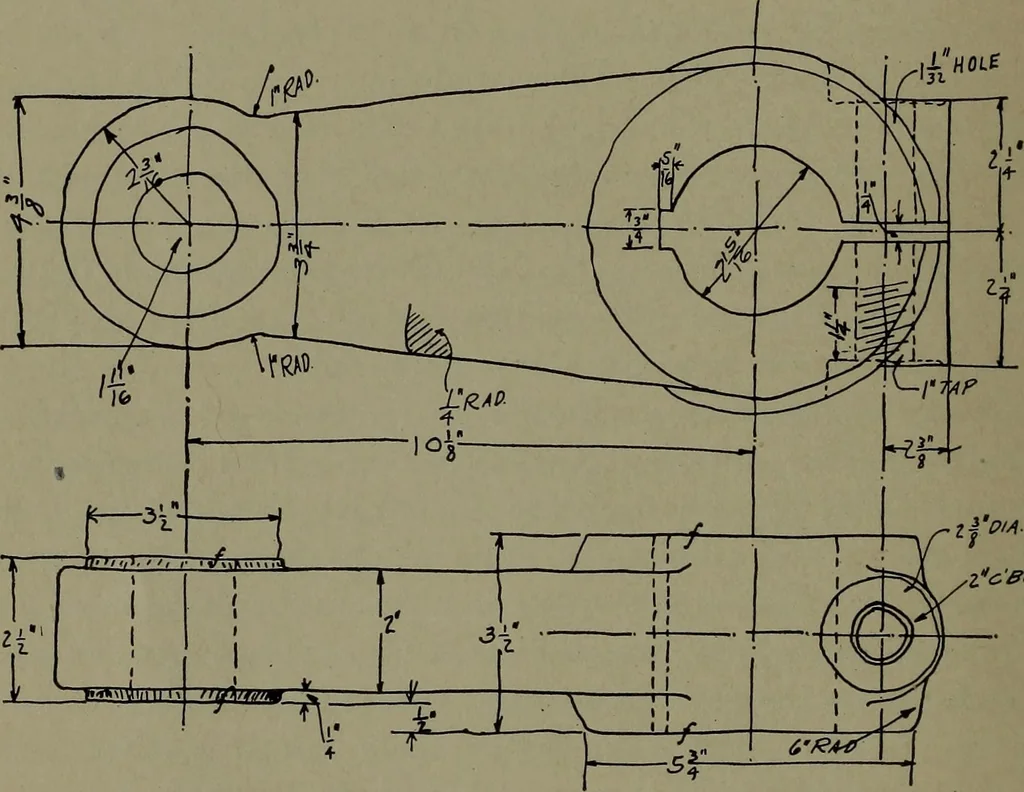

located but that it has the three dimensions, length, breadth, andthickness properly noted. Thus in Fig. 31, the large hub should first be located by givingits distance 10| from the center of the smaller hub, then its diameter5f should be given, the distance between its faces 3|, and 6… … IcBozs Fig. 31. Preliminary Sketch of Crank be located by the figure 2§ to its center, its location in the otherdirection being on the center line of the arm. This boss has adiameter of 2f and a length of 2i each side of the center to thefinished surface, the depth of the counterbore being TV\ and…
