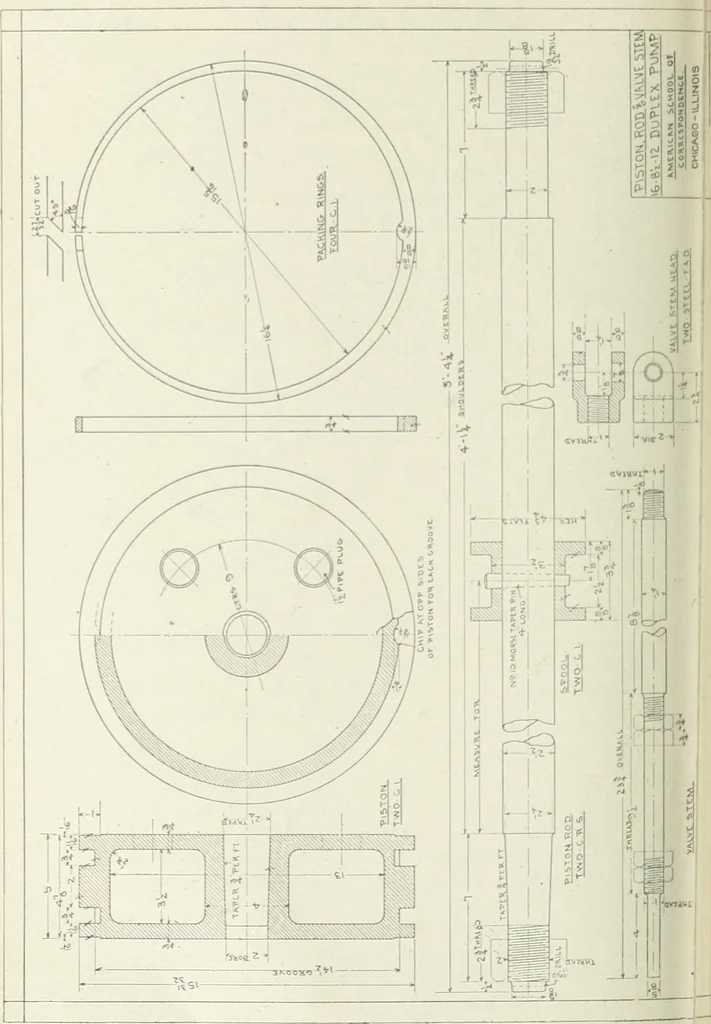

iron. S. C steel casting. Bz bronze. C. R. S cold rolled steel. T. S tool steel. O. n. S open hearth steel. W. I wrought iron. PJate E. Piston Rod and Valve Stem. Tlie piston is ofI the one-piece box type, with sprung-in rings. The widtli is re-duced to 4| inches at the outside, so that if the… … MECHANICAL DRAWIXG 33 nut is checked by a ^-inch split pin. The packing rings are pre-vented from slipping round the piston by lugs fitting loosely inchipped recesses iu the groove. These being at opposite sides foreaih groove, the leakage of steam through the split in the ring ismuiiuiized, for it…
