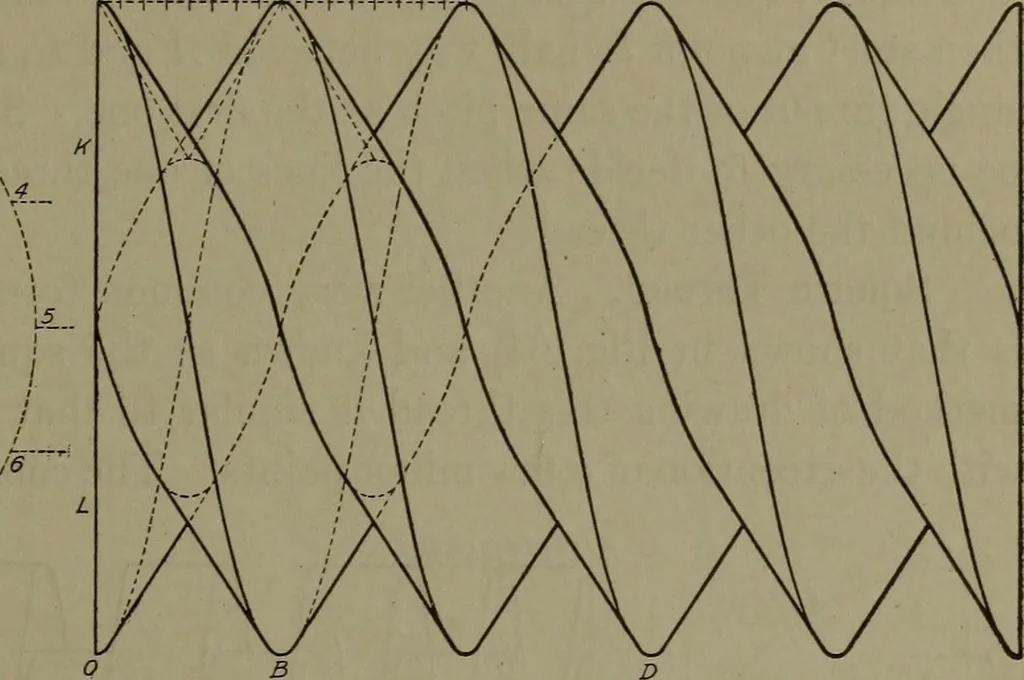

OB D Fig. 62. Accurate Projections of the Right-Hand V Screw Thread make the drawing are the outside diameter AO, the pitch AC, andthe depth of the thread AK. First draw the two projections of acylinder of a diameter equal to the outside diameter of the screw.Half of the end view is sufficient. On… … Fig. 63. Accurate Construction for Double V Thread cylinder KL, the diameter of which is equal to the diameter AOminus twice the depth of the thread. Now, on this smaller cylinder,starting at point H, perpendicularly under a point on the line ACwhich is half way from A to C, draw the helix LHJ with…
