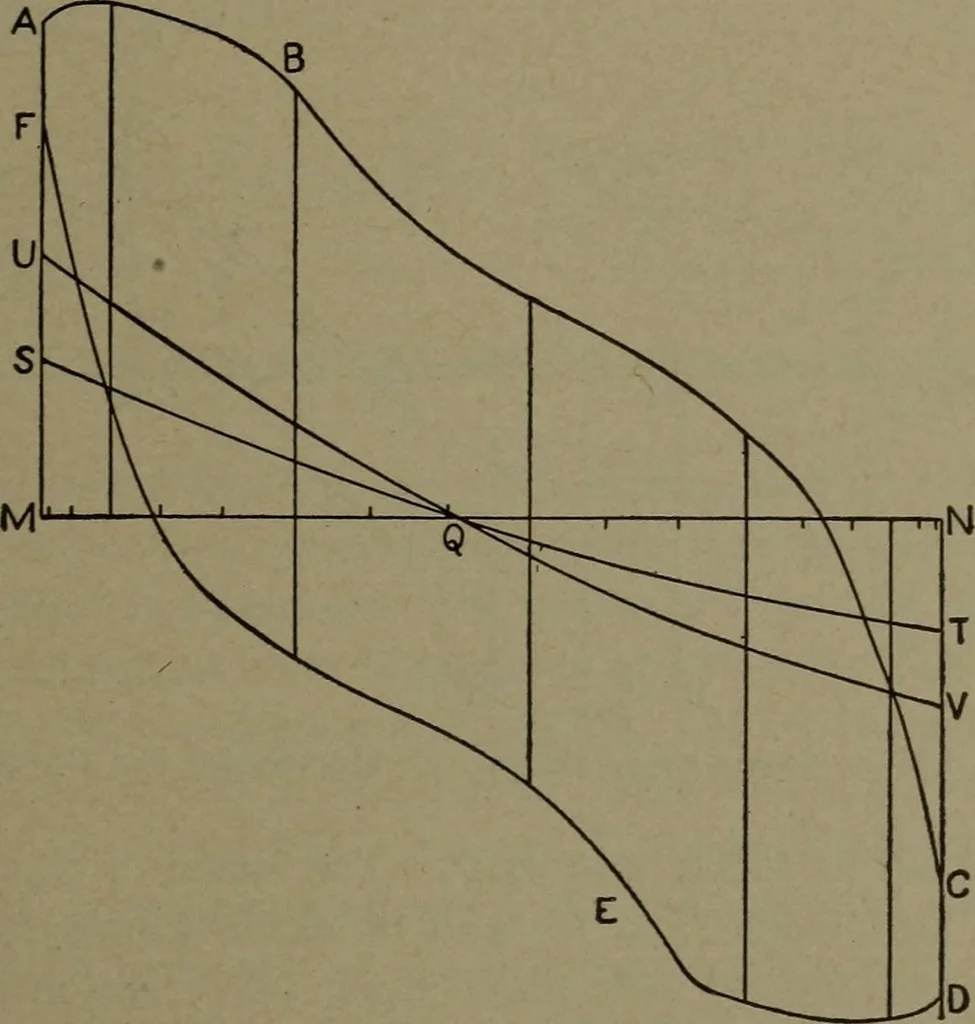

329 ED lines are scarcely visible is an ample proof of the sufficiency of theapproximate method. Note further how the rod inertia Pc combineswith the slant of the rod, in such fashion as to throw the pin pressuresfarther from the direction of the stroke line throughout the forwardstroke, but to… … Fig. 183. — Approximate Pin Pressures. pressure curves ABC and DEF are the same as in Fig. 172. By draw-ing the inertia-force curve ST for the slide alone, or for Fo/A = 27 lb.in this particular case, we get Pd as at A in Fig. 181, and this is practicallythe same in length as the wrist-pin pressure…
