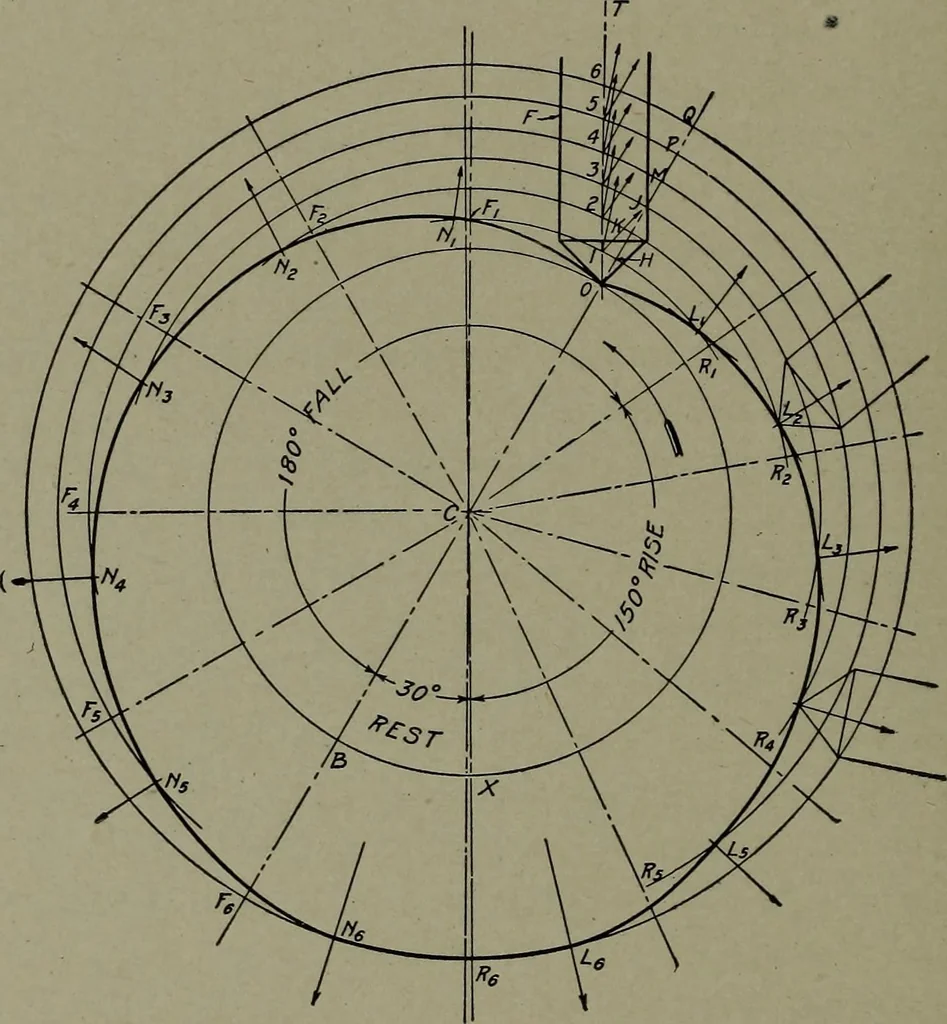

WING this radius the same as the original radius CO in Fig. 79, the radiusCX is drawn, making the arc of rise 150° as before. The radius CBis then drawn, giving the 30° arc of rest, and leaving the arc of fallbetween CB and CO 180° as before. Since the cam is to haveuniform motion, the subdivisions… … Fig. 80. Diagram of Cam with Pointed Follower Off Center ducing the intersections Rv R2, R3, Rv etc. Now, however, theintroduction of a new step should be noted. The original radius CO,not being coincident with the path of the follower OT, the inter-sections Riy R2, R3, etc., do not represent the…
