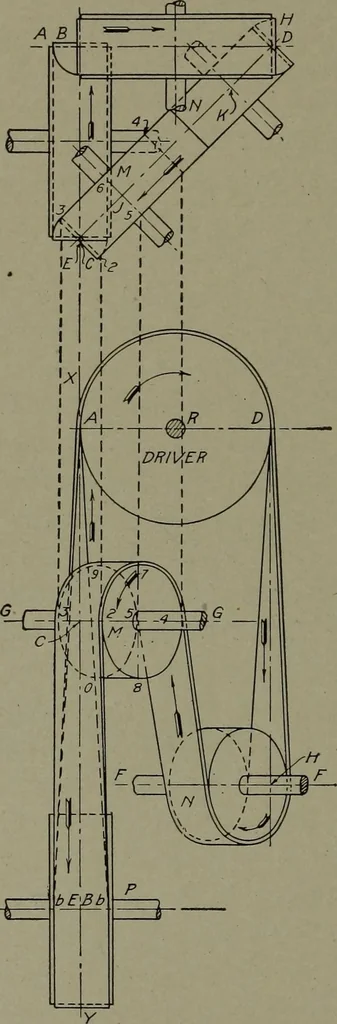

118 MACHINE DRAWING one face of N bisects the right-hand face of R at D. On the frontand side views, the location of the axes has been assumed as GG and FF, and the corresponding viewsof the pulleys are drawn accordingto the principles of projection. Examining the belt in passingfrom D to E, we…
