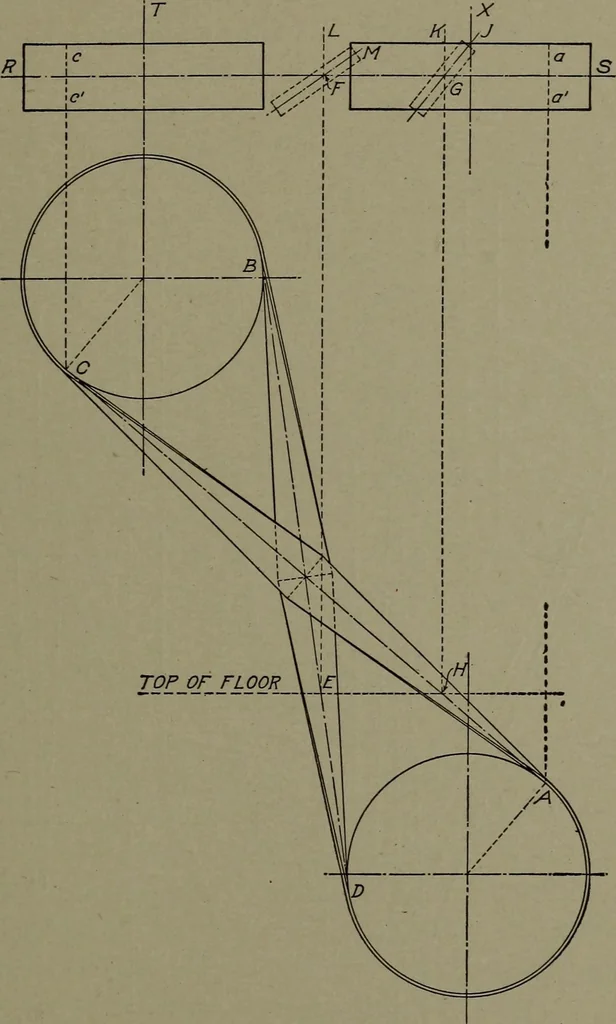

Fig. 108. Diagram Showing Method ofLocating Belt Holes MACHINE DRAWING 129 and the belt, in passing from A to C, twists through an angle of 180°,and the line which was at aa will occupy the position cc. There-fore, when the belt has passed from A to H, it will have twisted … Fig. 109. Diagram Showing Location of Holes for Crossed Belt through an angle which will bear the same relation to 180° that thedistance AH bears to the distance AC. That is, if AH = \ of AC,the angle JGK is \ of 180°, or 45°. Whether the angle JGK shallbe laid off to the right or to the left of…
