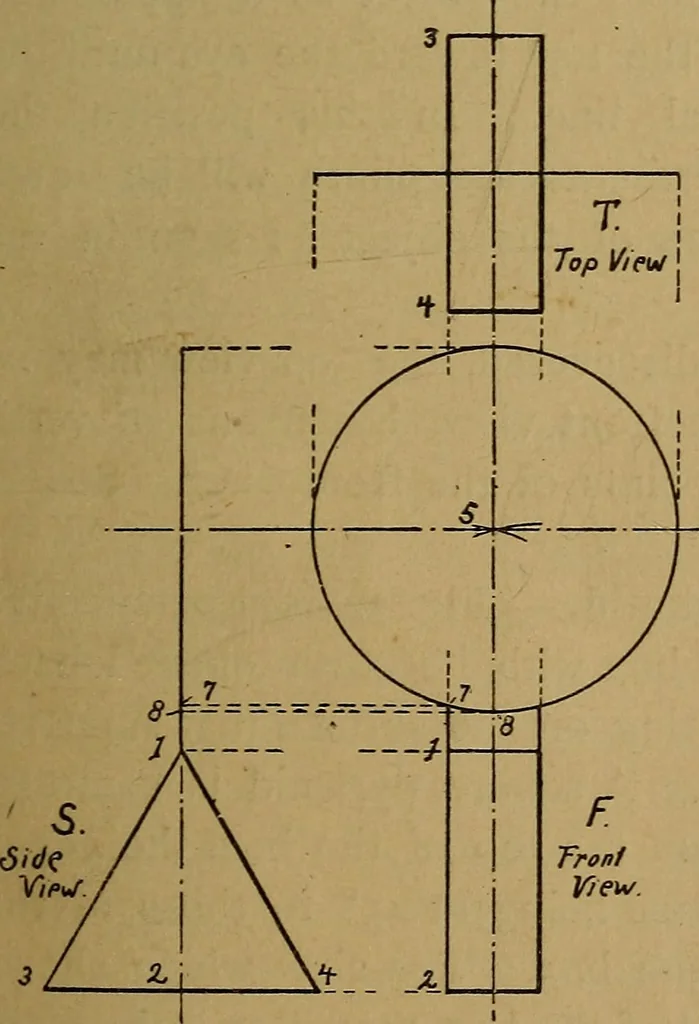

e plinth should be drawn. Todiscover its appearance, hold theplinth in the position representedby the side view, and then revolvethe object on a vertical axis sothat the right hand points of theplinth move toward the eye untilthe vertical triangles appear asnearly as possible vertical lines.One… … Fig. 13. 40 MECHANICAL DRAWING. equal to the distance 1-2 of ^. The front view of the plinth may-no w be drawn at the right of and on the same level with the sideview. In this view the wires which support the disc are seen of theirreal lengths ; they should be represented when the front view of…
