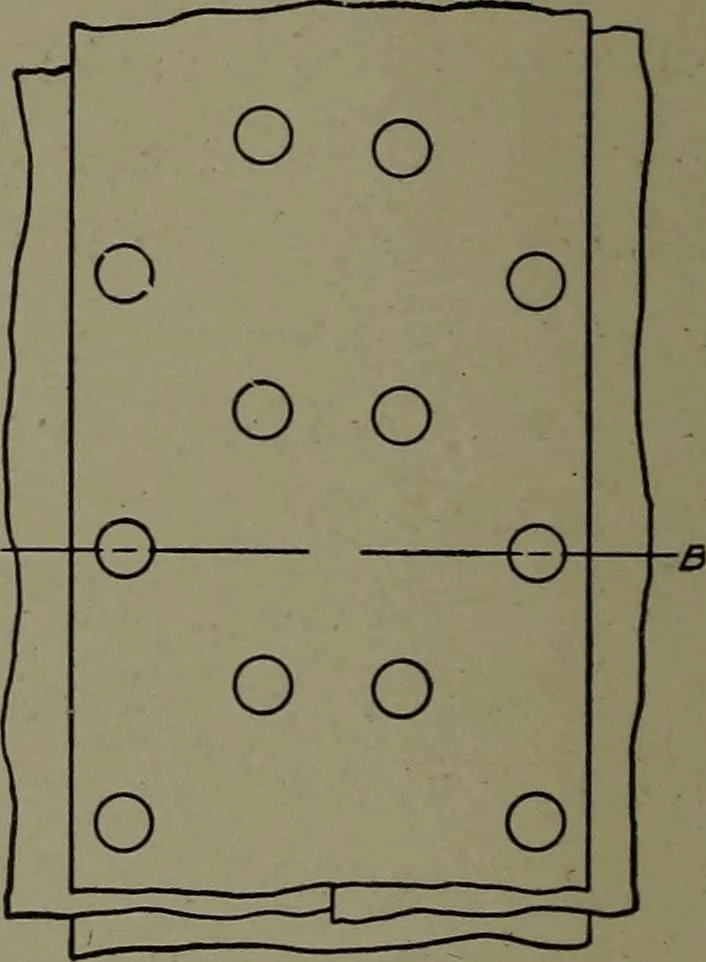

y other,except that the material which was cut by the plane is cross-hatched. Crosshatching consists of drawing medium width lines,regularly spaced, across the cut surface, the lines usually being atan angle of 45° with the horizontal. In case of two adjoining sur-faces being cut, the lines are…
