Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments. Elementary instruction in practical mechanical drawing. Together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1889)

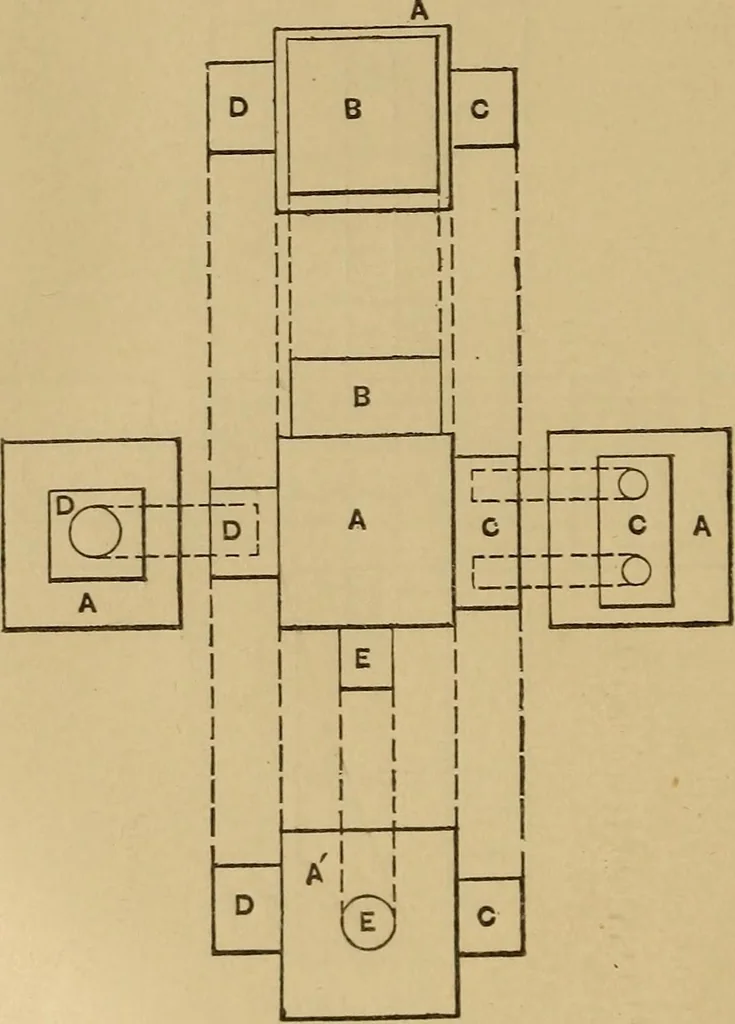

dfrom position i, the bottom face turned uppermost,and the piece moved down the paper to position 2, jjQ MECHANICAL DRAWING SELF-TAUGHT. which is a bottom view of the piece, and the bottomview in the drawing. Similarly, if the piece be liftedfrom position i, and the top face in that figure isturned… … Fig. 148. shape of member B, then in Figure 145 we require tolook at the top of position i, and then down below toposition 2. But in Figure 146 we have the side view and endview both together, while the dotted lines do not re-quire to cross the face of the side view. Now sup- THE ARRANGEMENT OF…
