Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)
Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 20

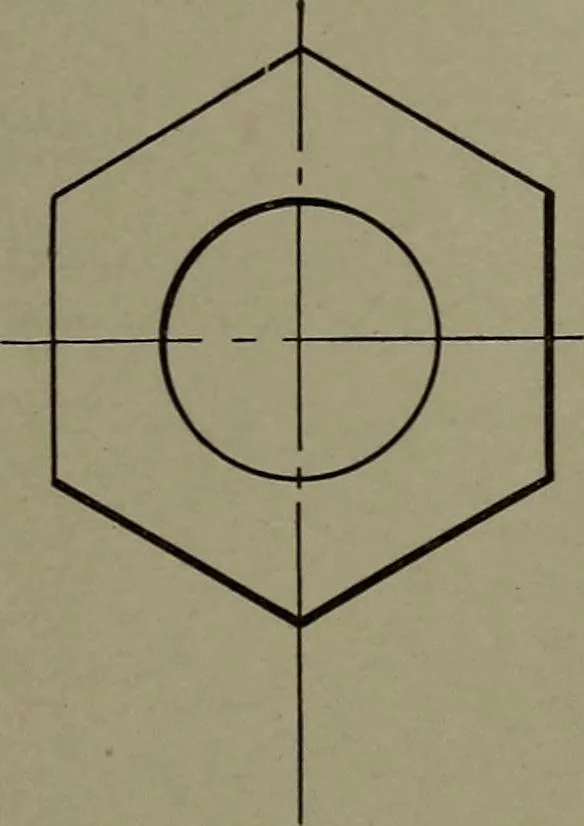

r Fig. 14. Location of Shade Lines forCircular Piece Fig. 15. Location of Shade Lines forHexagonal Piece Dimensions. It is easy to spoil an otherwise good drawing byloose and careless methods of putting on dimensions. Systematicand careful effort must constantly be used to make every dimension 10…
