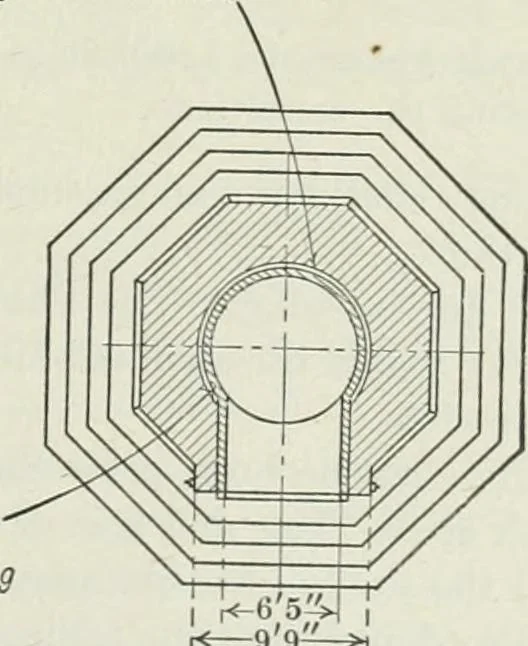

An illustration from Mechanical equipment of buildings; a reference book for engineers and architects, 1916, leaf 208 — Typical Plan of Base having Two Flue Openings Diametrically Opposed Minimum Air Space of 2 between Lining and Main Wall Water Tableof Neat Cement l-Beams over^Flue Opening ^s X 3 W.I. Ring atFoot of Column andabove and below the_ Flue Opening 4H, PerforatedRadial Bricli Lining … Cross Section A-A Fig. 14. Radial-Brick Chimney with Octagonal Base. It frequently occurs that due to limited headroom the flue opening must be wider than could otherwiset.e designed A rule for determining the maximum width of flue opening into chimney bases is aslollows: Multiply the width of the…
