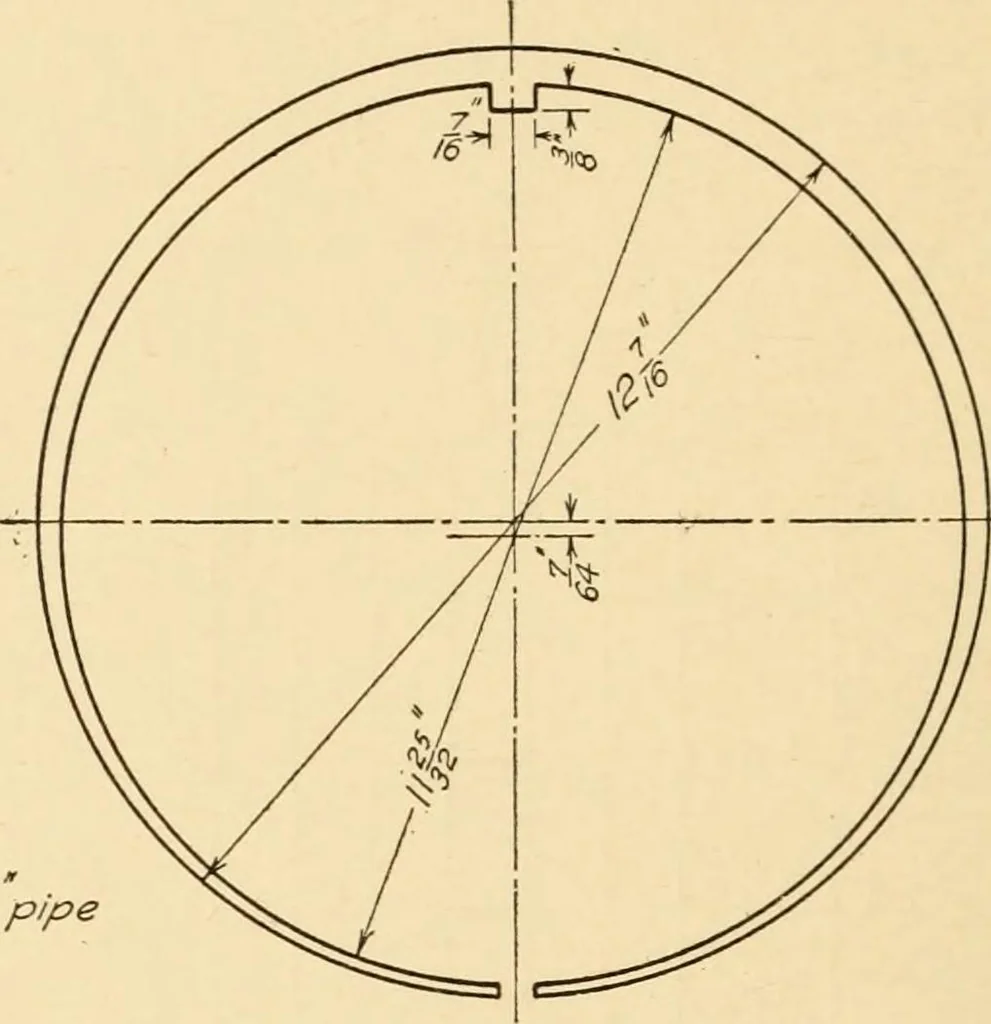

for /§ pipeplug. … \ N \ r 1. Fig. 278. Prob. 83. MACHINE DETAILS 196, The contents of Chap. V should be studied carefully while worldng the follow-ing problems. If reference books on Machine Design are available they should beconsulted. PROB. 83, Fig. 278.—Make a working drawing of the STEAM PISTON. Showone view as…
