Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 187

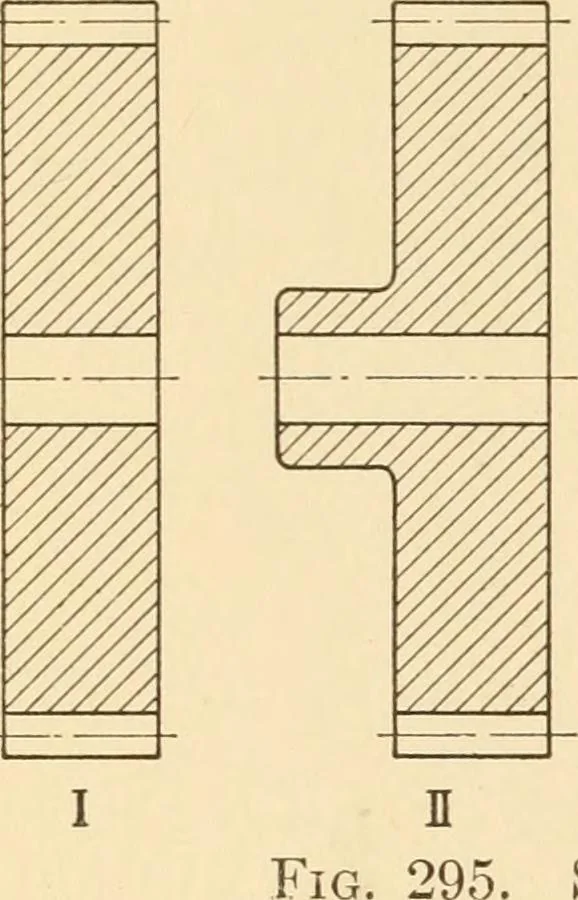

Fig. 294. Probs. 110 to 119. 175 176 MACHINE DRAWING … ZZZ/. ^ I V^ZP^ ^ ^Mv. n Spur Gears. n PROB. 109, Fig. 204, Chap. IX.—Make a SPUR GEAR drawing asshown in Fig. 204. PROB. 110, Fig. 294.—Make aSPUR GEAR drawing similar to Fig.204 for conditions which follow. Foursections are shown in Fig. 295 wherea plain gear is shown at I, plain withhub at II,…
Machinery
