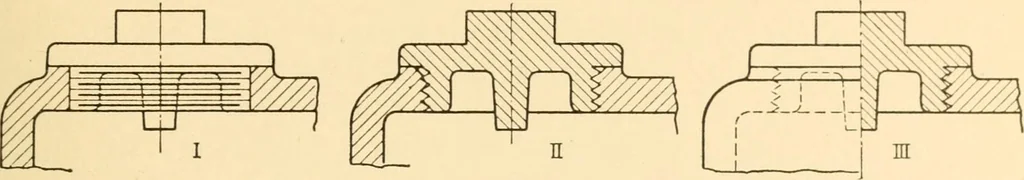

d is seen. Either single or double circles may be used in the plan,and any of the plans may be used with any of the sections or elevations.The lines representing the roots of the threads when visible are madeheavy if inked, but when dotted all lines should be the same either inink or pencil. When… … Fig. 32. Screw Threads in Section. two or more threaded pieces are shown together, the methods of Fig.32 are used. Clearness may be preserved when drawing threaded piecesin elevation or section by using the methods of Fig. 33 at II, III, and IVwhere the thread lines are left out.
