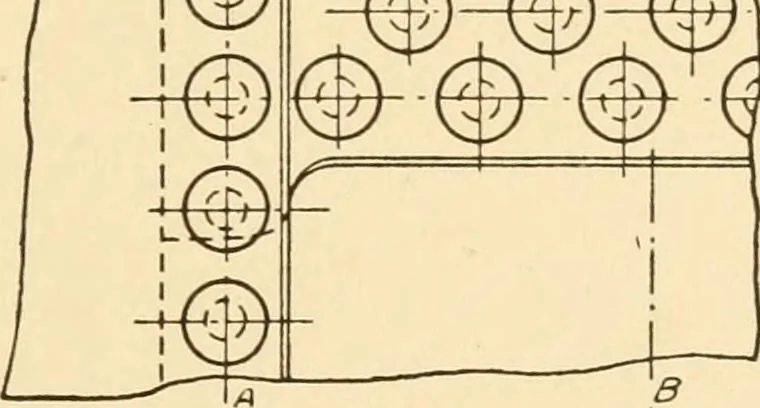

-#7#T^ … I 1^ Section BB Fig. G6. Joint for Three Plates. 66. When three plates come together they must be arranged so as tomaintain a tight joint. One method is shown in Fig. 66 where one of theplates is thinned out. 67. Miscellaneous Connections.—Methods of making connectionsare shown in Fig. 67. Angles…
