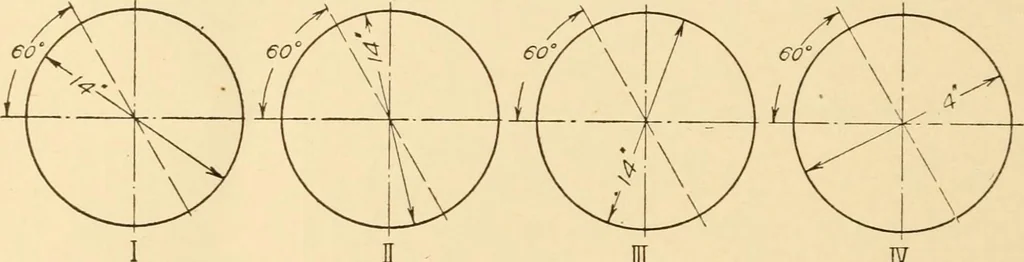

noted. Dimension lines must be kept away from other lines and from eachother. The clear distance between lines should be from Vie to Vie?estimated. If there are several parallel lines they should be the samedistance apart. Larger dimensions should be kept outside of smallerones. In the interest of… … II 1 ffi Fig. 118. Slanting Dimension Lines. line with the slant, either from the left or right as in Fig. 118 where thelimiting angle is shown as 60°. When a dimension line is made continuous for several successivedimensions as in Fig. 119, it is said to be continuous. When the dimension lines for…
