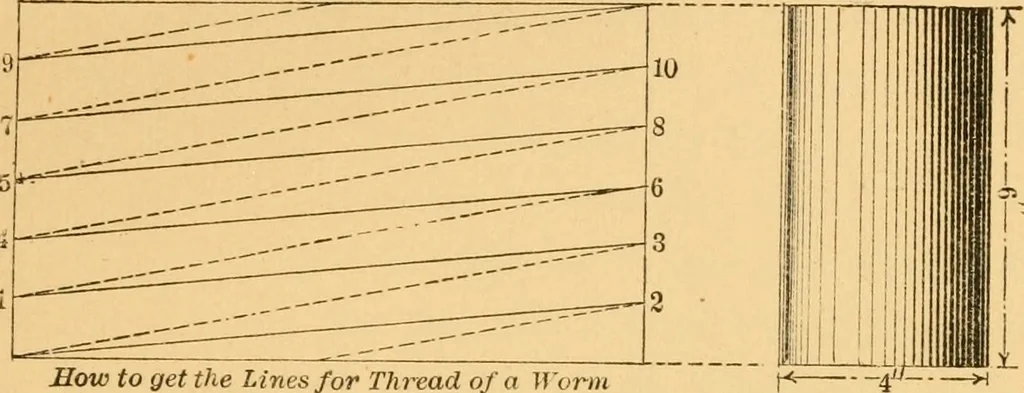

of 75 degrees with the axis of the worm.This is correct for an involute, because that is what a racktooth would be, and the worm is similar to the rack inthis case. A section of the wheel pattern is shown inFig. 109; the rim is first built up and turned straight onthe outside, the pattern being… … How to get the Lines for Thread of a Worm
