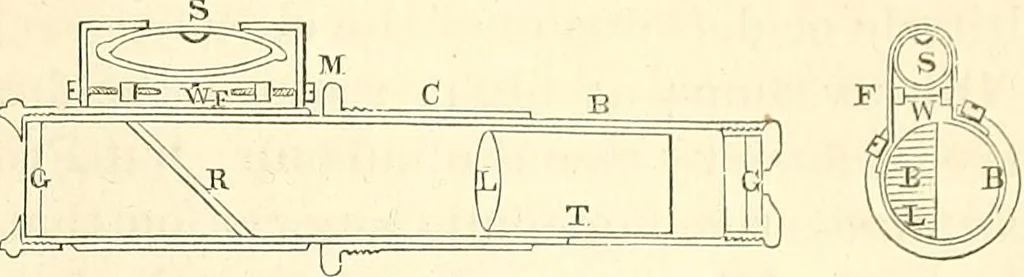

of an observing tubeto which is attached, on the top, a small spirit level, the bubble of whichis seen by reflection, in a manner which Fig. 140 will serve to explain.The observing tube is G G, which is supported by the exterior tube C :and this in turn is secured to the sextant by the screw M.… … W, on the top of the tube, isan opening, which permits thebubble of the level S to be seenby reflection from the mirrorE, placed at an angle of forty-five degrees to the axis of the 6 tube. As the level will be too Davidsons Spirit-level Sextant. near for distinct vision, a convex lens, L, is…
