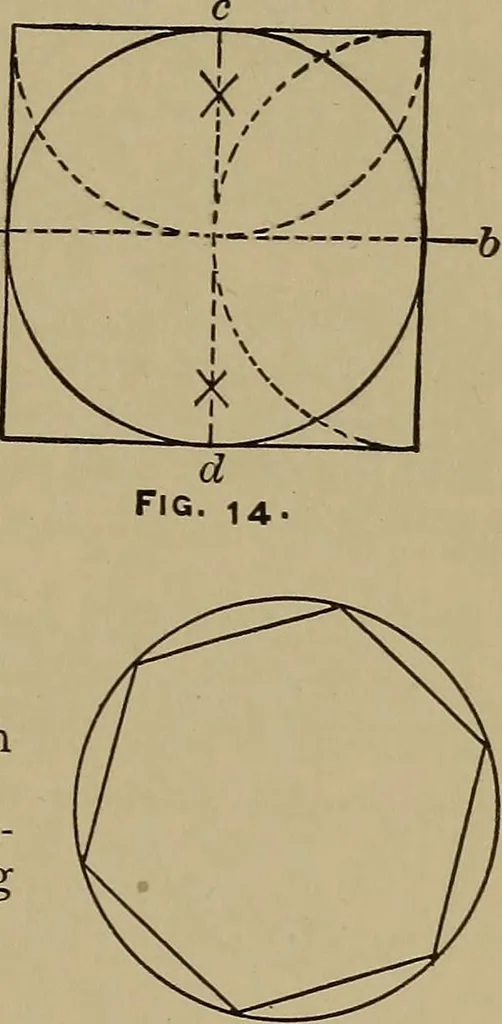

To draw a square outside agiven circle. (See Fig. 14). Solution: Draw lines a b and c d, andfrom points of intersection at b andc, describe half circles; their pointsof intersection determine the sidesof the square. To draw a hexagon within a givencircle. (See Fig. 15). Apply the radius as a chord… … Fig. 15- Fig. 16, To inscribe in a circle a regular polygon ofany given number of sides. Solution: Divide 360 by the number of sides, and thequotient is the number of degrees, minutes, andseconds contained in the center angle of a triangle,of which one side will make one of the sides inthe polygon.…
