Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 68

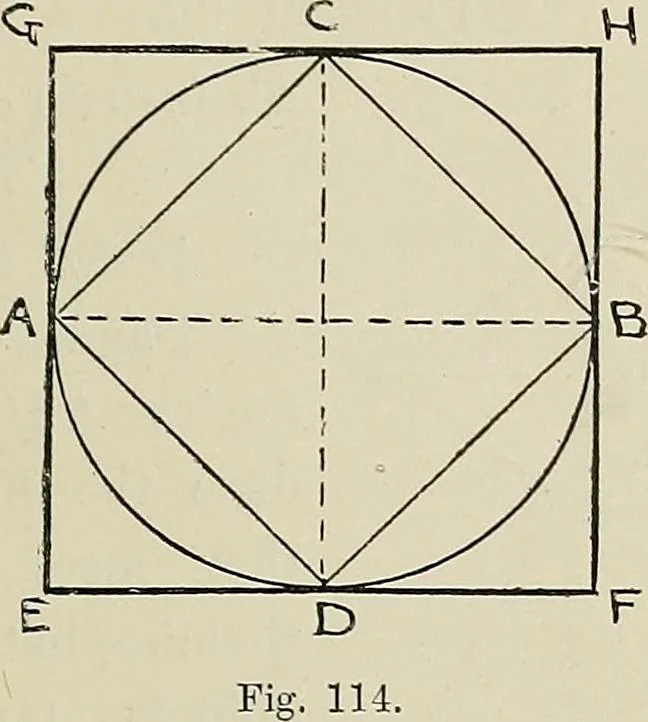

E L B Fis. 113. Problem 56. To inscribe a square in a given circle. Draw any two diameters AB and CD at right angles toeach other. Join the extremities of these diameters.ACBD is the inscribed square required. INSCRIBED AND DESCRIBED FIGURES 47 … Peoblem 57. To describe a square about a given circle. At the points A, C, B, D draw tangents meeting each otherat the points E, F, G, H (Prob. 84). EFHG- is the described square required. Peoblem 58. To inscribe a circle in a given square. Draw the diagonals AB and CD intersecting each otherat E.…
Geometrical drawing
