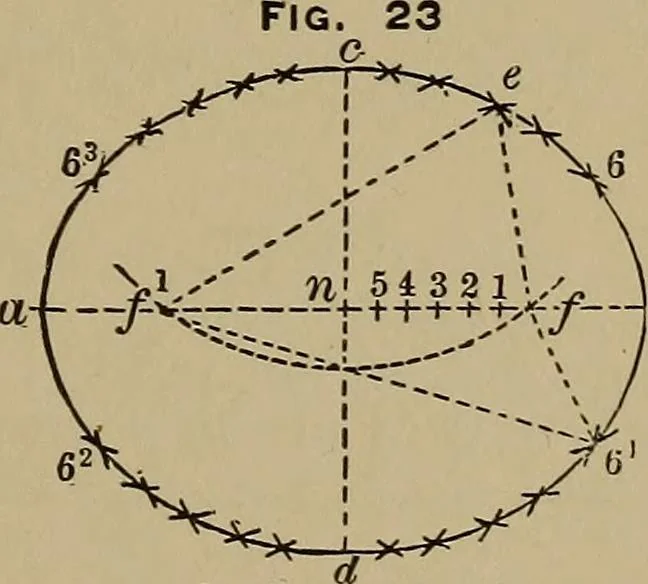

be an arc f1 f. Thepoints where this arc intersects ab are foci. The distance fn isdivided into any number of parts,as 1, 2, 3, 4, 5. With radius 1 to b,and the focus/as center, describe arcs 6 and 61radius and with f1 as center describe arcs 6radius 1 to a and/1 as center, describe arcs… … with the sameand 63. With 190 PROBLEMS IN GEOMETRICAL DRAWING. way marked out, draw the ellipse by using a scroll. It is aproperty with ellipses that the sum of any two lines drawn fromthe foci to any point in the circumference is equal to the largestdiameter. For instance: /1 e +fe, = ab, or/61…
