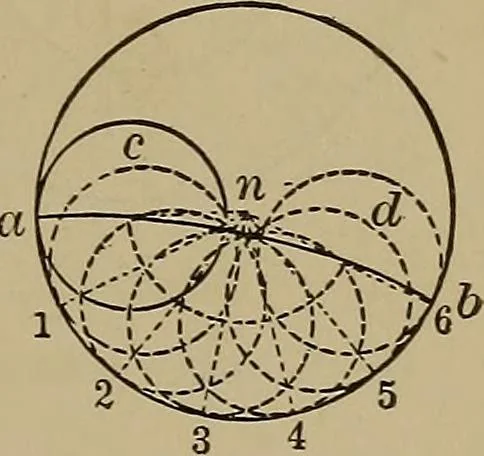

construction is essentially thesame as the cycloids. In Fig. 26, the generating circle is shownin seven different positions, and the point n, in the circumfer-ence of the generating circle, may be followed from the positionat the extreme left for one full rotation, to the position where itagain… … Divide the circumference of the gener-ating circle into any number of equal parts.Set off these on the circumference of thefundamental circle. From each point ofdivision draw radial lines, 1, 2, 3, 4, 5, 6.From 11 as center describe an arc throughthe center of the generating circle, as the arc c d.…
