Mechanical drawing. Prepared for the use of the students of the Massachusetts Institute of Technology, Boston, Mass (1887)

Faunce, Linus · Boston, W.J. Schofield, Printer · leaf 38

An illustration from Mechanical drawing. Prepared for the use of the students of the Massachusetts Institute of Technology, Boston, Mass, 1887, leaf 38

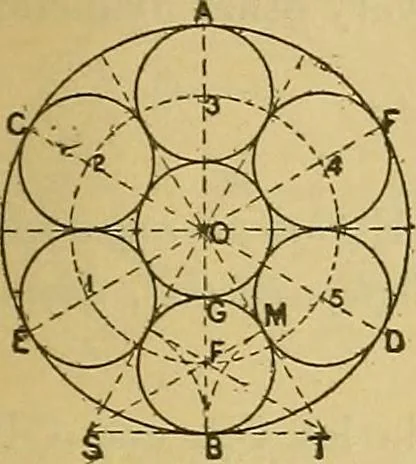

GEOMETRICAL PROBLEMS. 35 Prob. 72. Within a given circle AFD. . . .G to draio sixequal circles tangent to each other and the given circles. Draw the diameters AB, CD, and EF, di-viding the circle into six equal parts (Prob.24, Note). Divide any radius as OB intothree equal parts (Prob. 11), at…

Mechanical drawing

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
