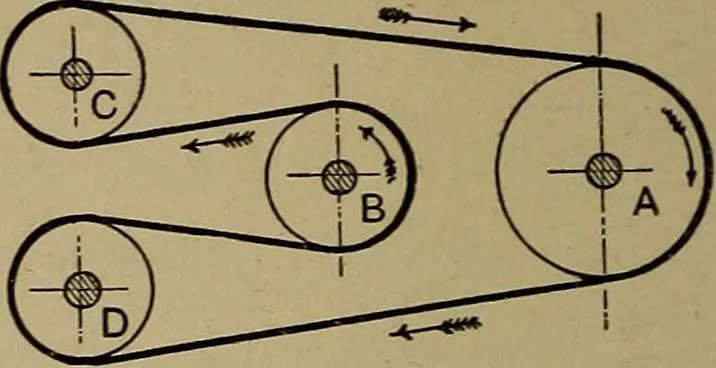

se of acrossed belt or when a crossedbelt, for any other reason, cannotbe used. Suppose pulley A to be thedriver and to run in the direction of the arrow. C and D areguide pulleys, and the motion of the driven shaft B is in the op-posite direction to the shafts. In this case the guide pulley C ison… … Crossed Belts. If the distance between A and B (Fig. 2) had been longenough, it would have been preferable to reverse the motion ofB by means of a crossed belt, instead of by the arrangementshown in Fig. 2. Crossed belts do not work well when running on pulleyssmall in diameter as compared to the…
