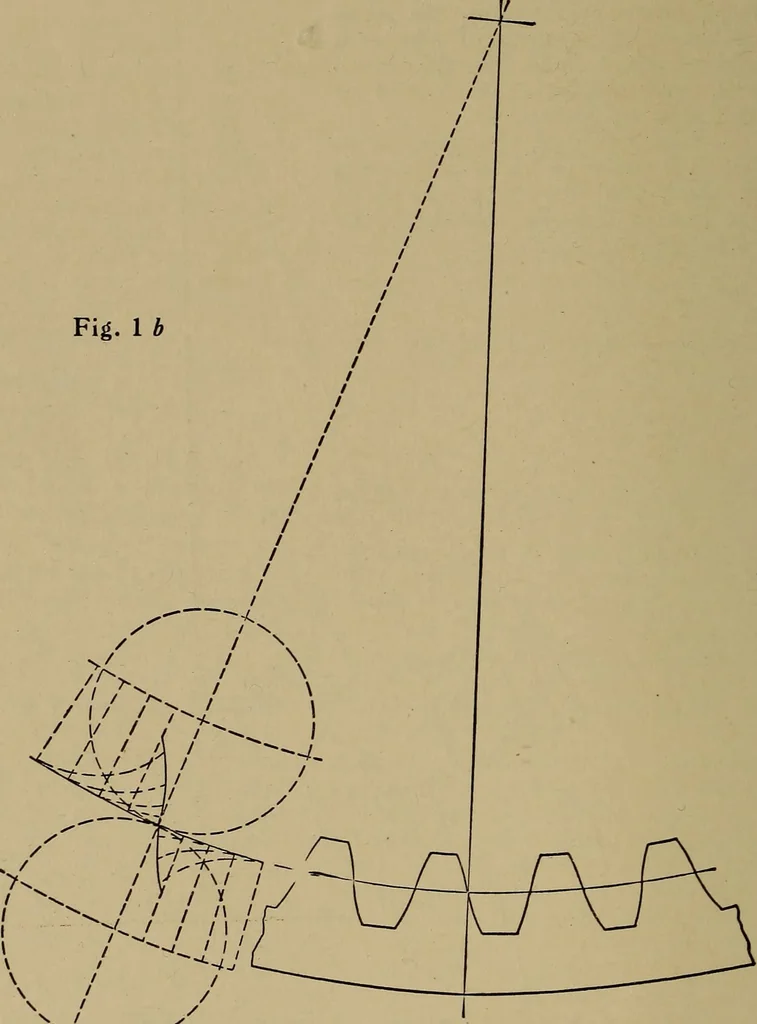

so small a pitch as half-inch are now veryseldom made with cast teeth, but such gears are usually cutfrom solid stock and the teeth are usually constructed accord-ing to the involute system and calculated according to dia-metral pitch. 3»4 GEAR TEETH Fig. i b shows a gear with internal teeth… … GEAR TEETH.. 385 When internal teeth are constructed according to this sys-tem, the difference between the number of teeth in the internalgear and its external pinion must never be less than 12; practicallyit is better to limit the difference to 15 or 20 teeth. As interchangeability is seldom…
