Machinists' and draftsmen's handbook, containing tables, rules and formulas, with numerous examples explaining the principles of mathematics and mechanics as applied to the mechanical trades; intended as a reference book for all interested in mechanical work (1910)

Lobben, Peder, 1858- · New York, D. Van Nostrand company · leaf 422

An illustration from Machinists' and draftsmen's handbook, containing tables, rules and formulas, with numerous examples explaining the principles of mathematics and mechanics as applied to the mechanical trades; intended as a reference book for all interested in mechanical work, 1910, leaf 422

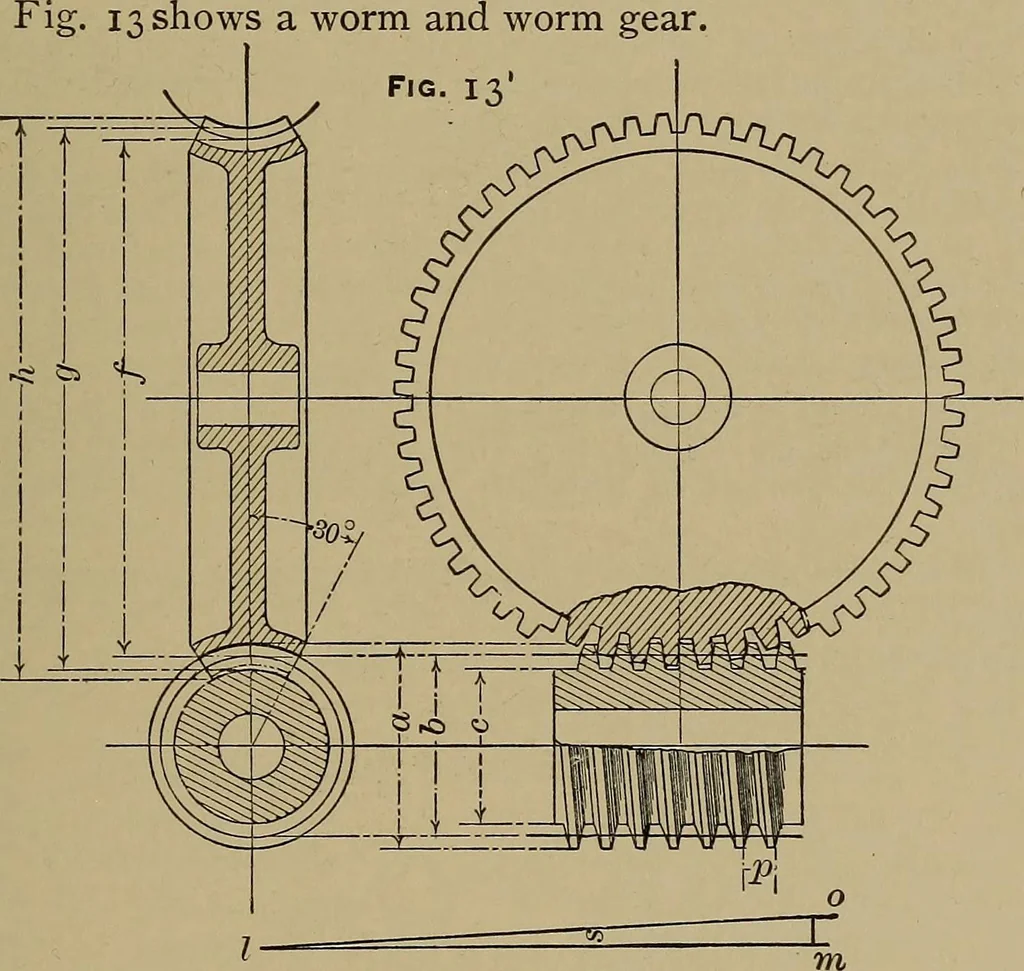

ha little, outside the pitch line on the small end, by filing. Of course, a spur gear cutter cannot be used for cut-ting bevel gears, because, although it may have the correctcurve, it would be too thick. The thickness of a bevel gearcutter must be at least 0.005 inch thinner than the space… … /= Pitch diameter of gear. g-= Smallest outside diameter. h = Largest outside diameter. a = Outside diameter of worm. b = Pitch diameter of worm. c = Diameter of worm at bottom of thread. The ratio between the linear pitch and the diameter of theworm is arbitrary. It may be four times the circular…
