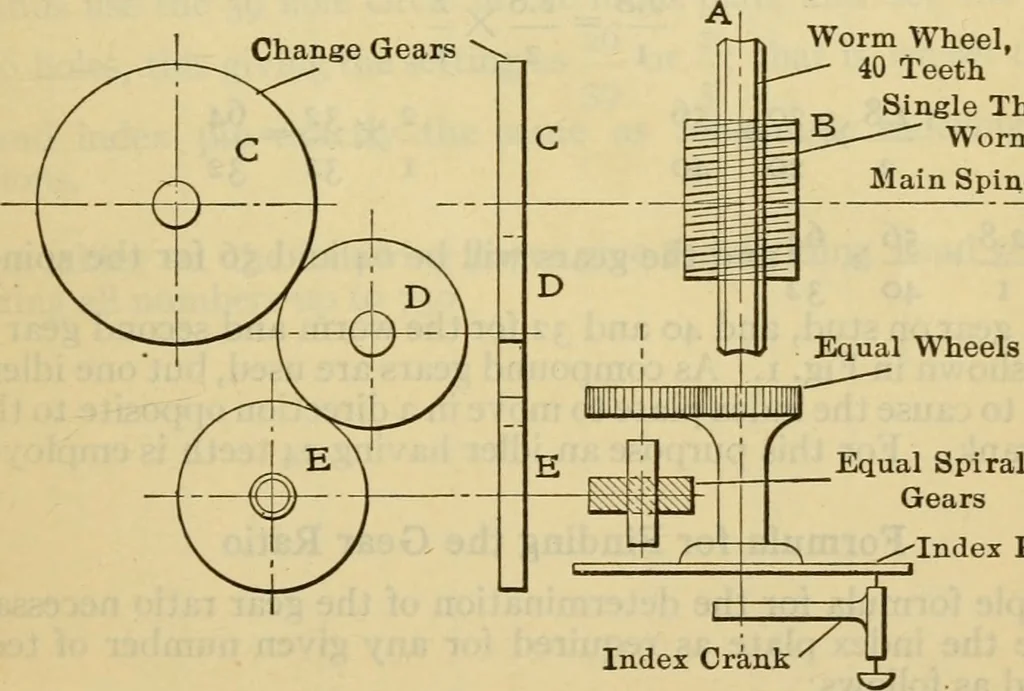

Fig. 2 Worm Wheel,40 TeethSingle ThreadWorm Main Spindle … Index Plate Index Crank Fig. 3 index plate; whichever is found necessary to determine the actualmotion which must be given to the index crank in order to satisfy theformula given above for simple indexing: Actual movement of the index crank = —- •NThe two views in Fig. i and the diagram. Fig. 3,…
