Manual for railroad engineers and engineering students : containing the rules and tables needed for the location, construction, and equipment of railroads as built in the United States (1883)
Vose, George L. (George Leonard), 1831-1910 · Boston : Lee and Shepard · leaf 257

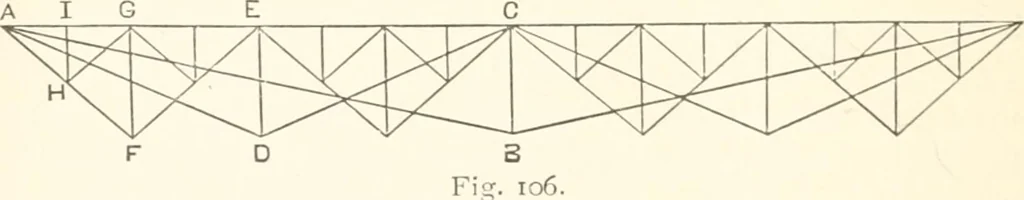

me structures wrought iron beams have been suspended, longi-tudinally, from post to post, with floor beams extending acrossthe bridge resting thereon. The largest work yet constructed upon the above plan is thefine bridge recently completed by Mr. Fink across the OhioRiver at Louisville ; although… … feet, the length of panel 15 tJ. and the arrangement as givenin Fig. T06. The assumed moving load is 2600 pounds per linealfoot. The permanent weight from the actual bills of materialemployed is as follows : — BRIDGE-BUILDING. 233 Track and flooring, 242 feet, at 690 pounds per foot, 166,980…
Railroad engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
