A text book of physics, for the use of students of science and engineering (1918)
Duncan, John, d. 1941, Starling, Sydney George, 1873- · London Macmillan · leaf 579

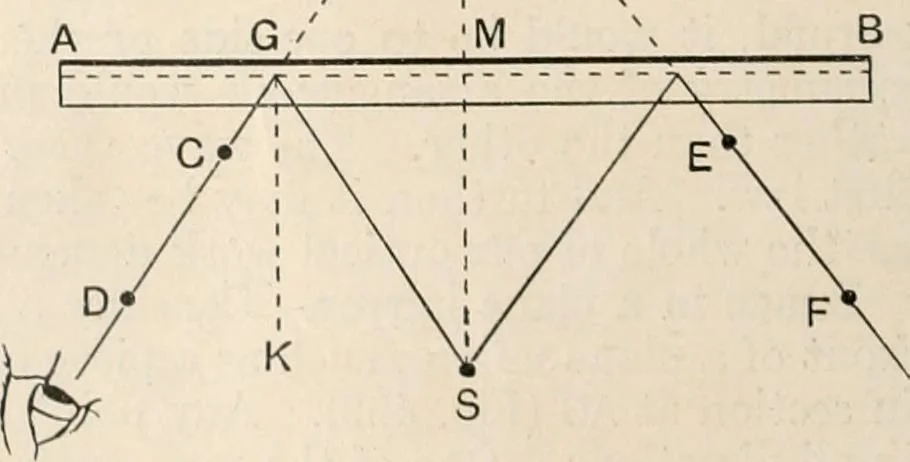

he paper atS. On looking into themirror an image of the pinwill he seen at S. The aim is to locate thisimage. Put another pin atC, and. looking horizontally with C and S in line, place a third pin at Din line with C and S. Repeat this procedure at E and F and at a numberof other positions. Draw the… … Fig. 500.—Experiment on reflection by plane mirror. XLIII IMAGE IN PLANE MIRROR 555 Now measure SM and SM, and show that they are equal. Again, GCDis a reflected ray corresponding to the incident ray SG. Draw the normalGK, and measure the angles SGK and KGD with a protractor. Do thesame for the…
Physics
