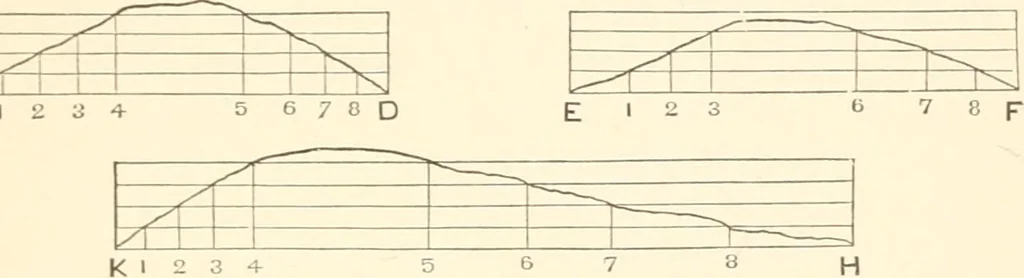

Fig. 9. Fig. 10. SURVEY. 21 The above figures contain the elements of the whole of topo-graphical drawing, as regards the tracing of contour lines. Inthe section of regular figures the horizontal projections of thosefigures are also regular ; but in a broken surface, like the ground,the lines… … Fisr. ii. Suppose that we wish to show, upon a plan, the relief of a hillof which we have the profiles given by the irregular lines in thesections A B, C D and E F, Fig. n. Intersect each of these
