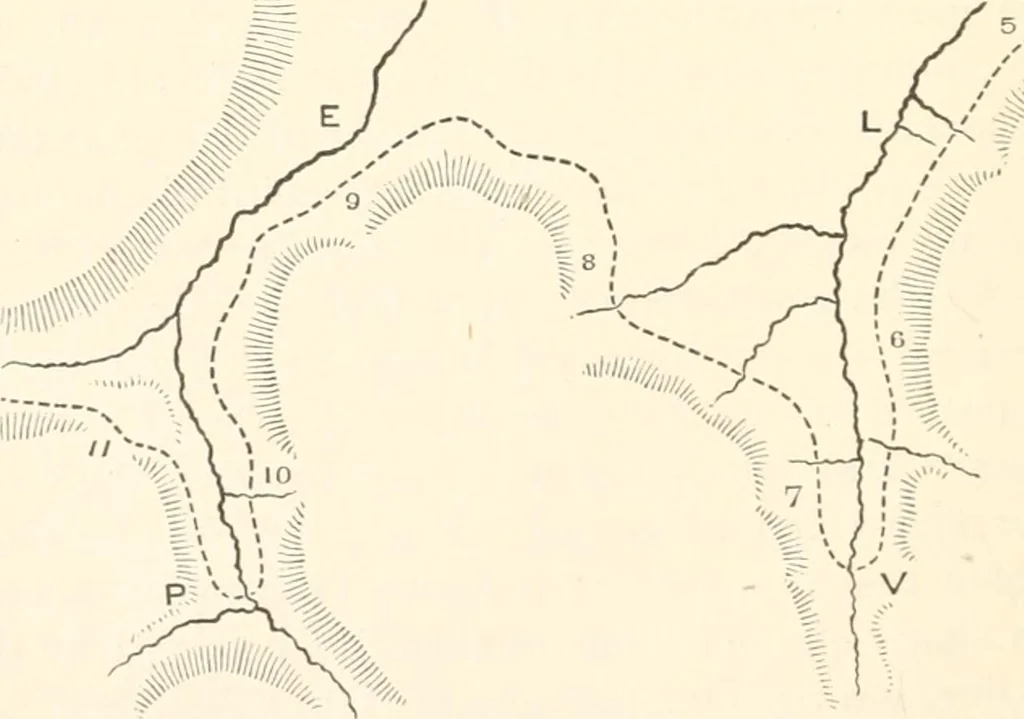

ured withan amount of excavation and embankment far below that encoun-tered upon the majority of roads traversing rough mountain passes,and hardly exceeding the average of roads in many parts of NewEngland. The grade line has been purposely kept quite high — avery essential precaution, on account… … Fig. 20. Pennsylvania Railroad, there are several very sharp curves andsteep grades. At Vanscoyoc, V, in Fig. 20, there is a semicircle LOCATION. 59 of 12° curve (radius 478 feet), and at Mount Pleasant, P, in theFig., a semicircle of from 150 to 160 40 curve (radius 383 to 345feet). The rise from…
