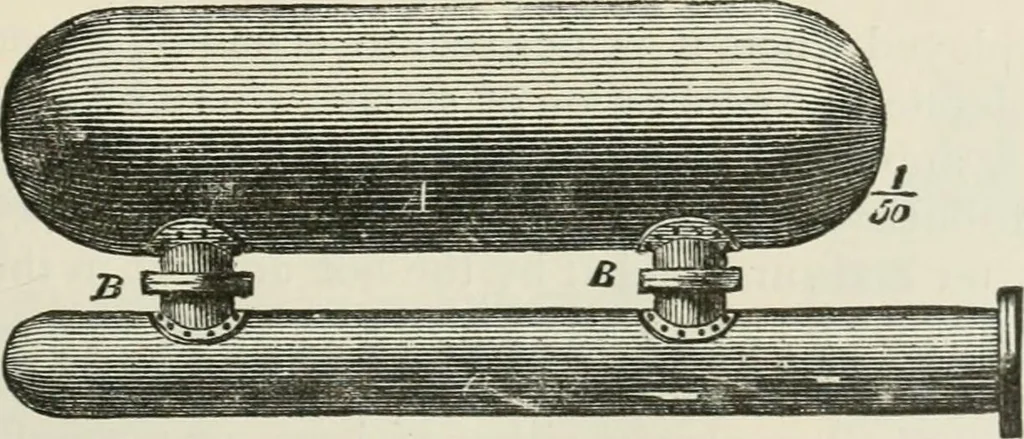

An illustration from A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc., 1878, leaf 156 — Fig. 618. … the main boiler ^4, and is connected with it by vertical tubesB, B. The advantage of these boilers is apparent; the mainboiler does not come directly in contact with the fire, and 144 HEAT, STEAM, AND STEAM ENGINES. [§ 403- is therefore very well preserved ; also the boiler tubes, onaccount of…
