A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 189

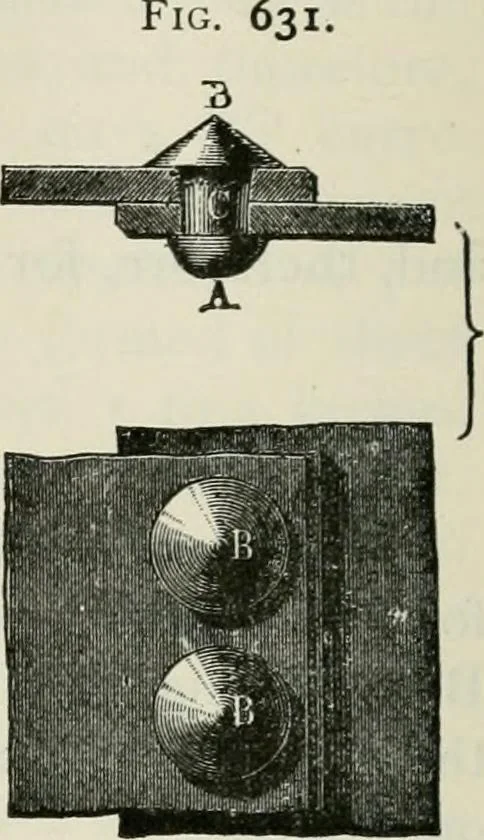

quare iv of its lateral length is deter-mined by the equation, which ofives 7t (i .-f 1 n T Inserting here also = o-ooi S, we obtain d = |/° —-1 a\p=0-o6ig a |p^ 7t According to Brix, we have d = o-o6ga Vp + o-125 inches. The cover of the fire box consists of a plane plate andreceives the necessary… … § 414.—Rivet Connections.— Plane and curved boiler-plate rivet connections are shown incross-section and plan in Fig. 631. If cis again the thickness of the sheet, thenthe rivet bolt C receives the thickness the hemispherical head A the diameter < = 3 ^.the conical head B the diameter and the…
Mechanics, Applied · Mechanical engineering
