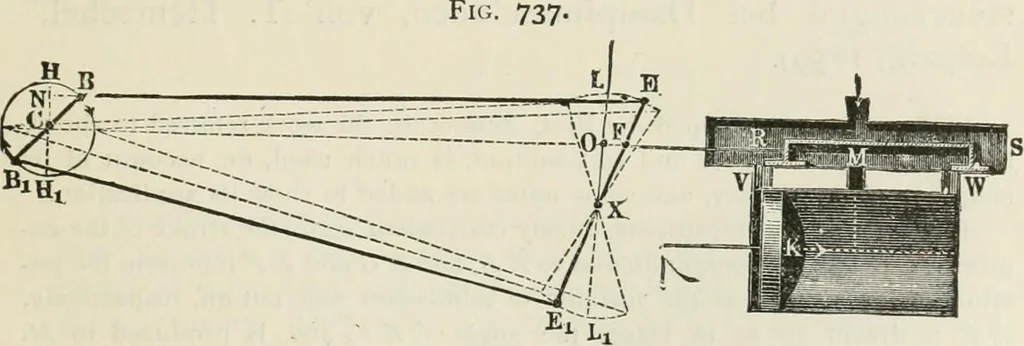

fulcrum X may be raised or lowered at pleasure. Tliislever carries the end F oi the valve stem FR in grooves,so that by the motion of the lever the end /^ moves simplyback and forth in the direction FR. If the lengths ofB E = B^ E^ are very large with respect to C B and XE,we can assume that the… … motion of any point F will be less than that of E in theratio of X F to X E. If, therefore, s is the distanceNB = L E, which the valve travels when moved directlyby the eccentric B, we shall have for the distance OF, OF X FXE LE, 306 HEAT, STEAM, AND STEAM ENGINES. [§461. or y s, = — s,c if we…
