A text-book of physics, largely experimental. On the Harvard college "Descriptive list of elementary physical experiments." (1891)
Hall, Edwin Herbert, 1855-1938, Bergen, Joseph Y. (Joseph Young), 1851-1917 · New York, H. Holt and Company · leaf 408

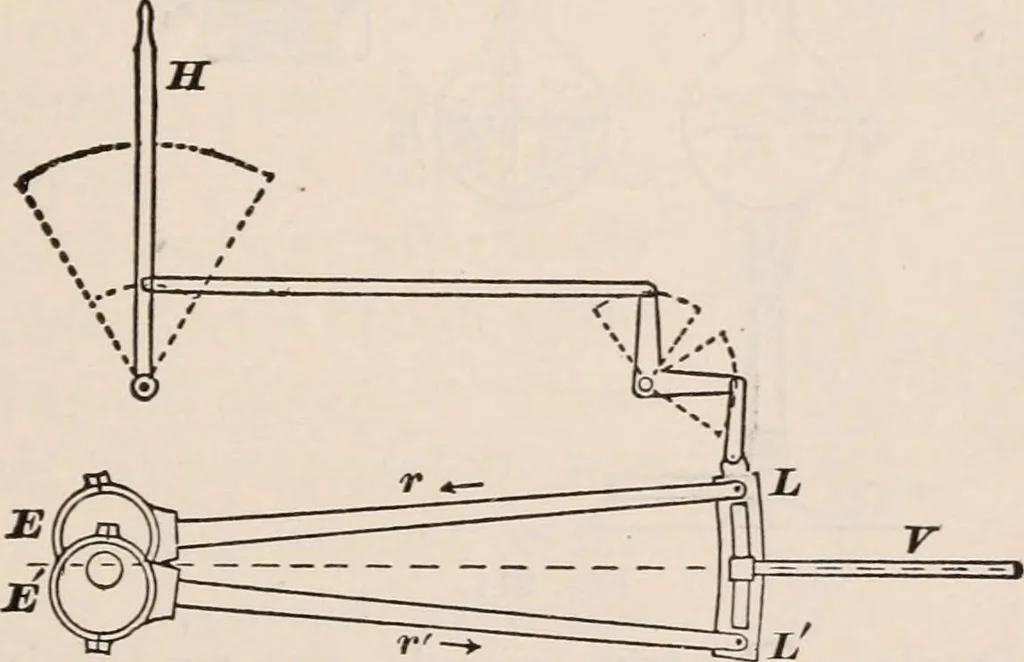

entred with it. The centre of each eccentric thereforerevolves in a small circle around the axis of the shaft.Each eccentric turns in a collar which connects it with therod r or r, and these two rods therefore move back andforth a short distance at every revolution of the shaft. If, as we will… … FIG. 210. between L and L, as in Fig. 210, the rod V and the valveat the other end of it have no motion. No steam is ad-mitted to the cylinder. If, however, the handle H werepulled far to the left, L would rise close to the end of V,and this rod and the valve would share the horizontalmotion of the…
Physics
