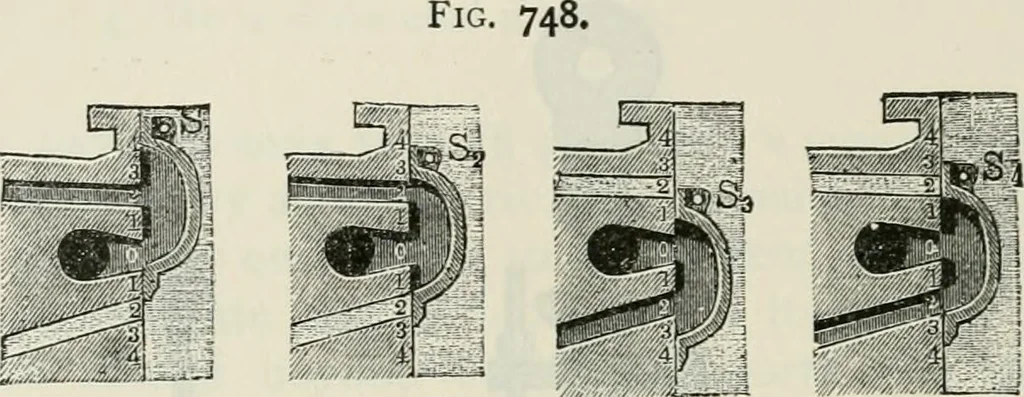

332 HEAT, STEAM, AND STEAM ENGINES. [§ 467. of the steam ports. Also when the piston is at the middleof its stroke, it must pass through one third of its travel, … and at the end of the stroke through the other two thirds,so that b on the eccentric should be as high again as a. Fig. 749. §4-67.—Eccentric for Variable Expansion.—The con-struction of the eccentric is seen in Fig. 749. Two diame-ters A A^ and B B^ divide the eccentric into four equal orimequal…
