A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 350

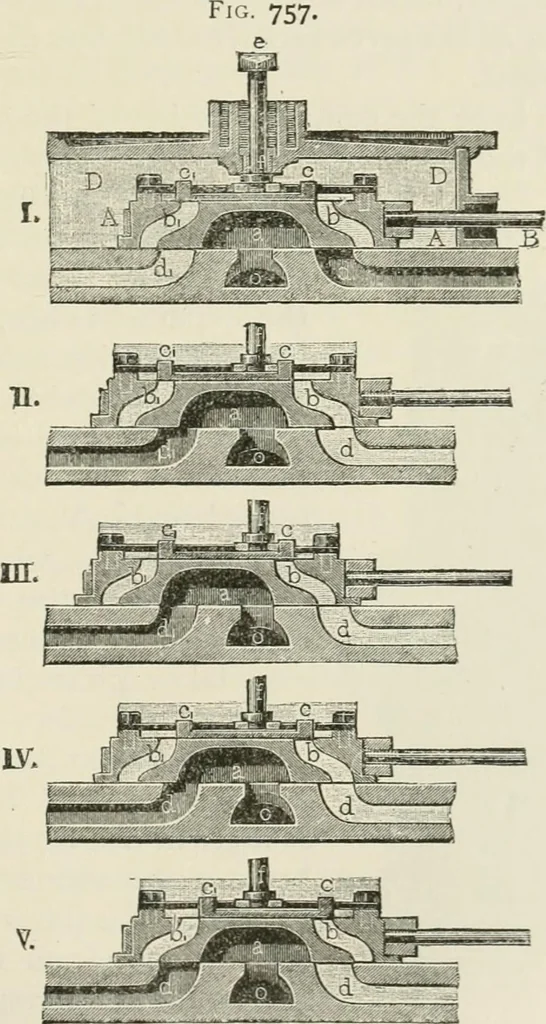

and cos. ftdiminishes with r, it follows here also that the time of ex- § 469-J THE STEAM ENGINE. 337 pansion which increases with {i is greater, the less theeccentricity r or the entire travel 2 r of the slide. More-over, the distance s passed over by the slide during expan-sion depends of course… … with the distributing slide, and those in which it is movedby a special rod. In Figs. 757 and 758 we have expansionslides of the first kind, and in Figs. 759 and 760 those of 338 HEAT, STEAM, AND STEAM ENGINES. [§ 469- the second kind. The distributing slide y^ A in Fig. 757, I.,II., III., IV.,…
Mechanics, Applied · Mechanical engineering
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
