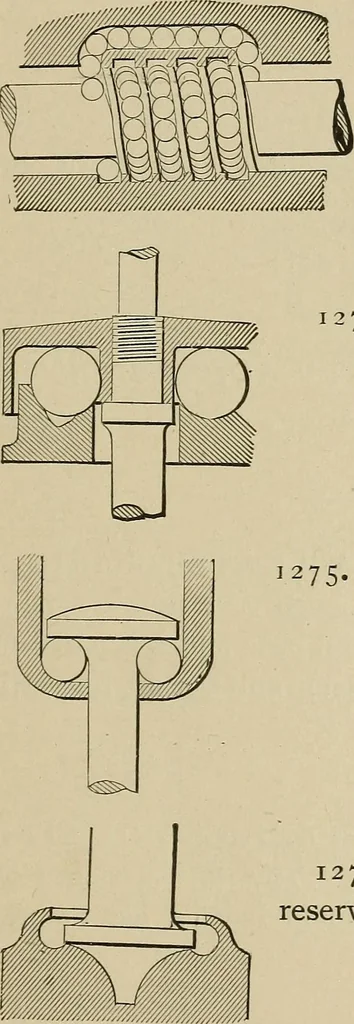

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 324 — 12 71. ADJUSTABLE HANGER for shafting.A, drop of the hanger. Jointed cap to allow ofremoval of shaft. 1272. SCREW TRAVERSINGBALL BEARING, with balls returningthrough outside passage. Grooves re-cessed in shaft. … 1273. SCREW TRAVERSINGBALL BEARING. The balls returningby a side passage. Ball grooves enlargedfor full strength of shaft. ■ 1274. HANGING SHAFT on ball bearings. 1275. SUSPENDED SHAFT on ball bearings. 1276. CURVED STEP BEARING, with oUreservoir. 3i6 MILL AND FACTORY APPLIANCES.
