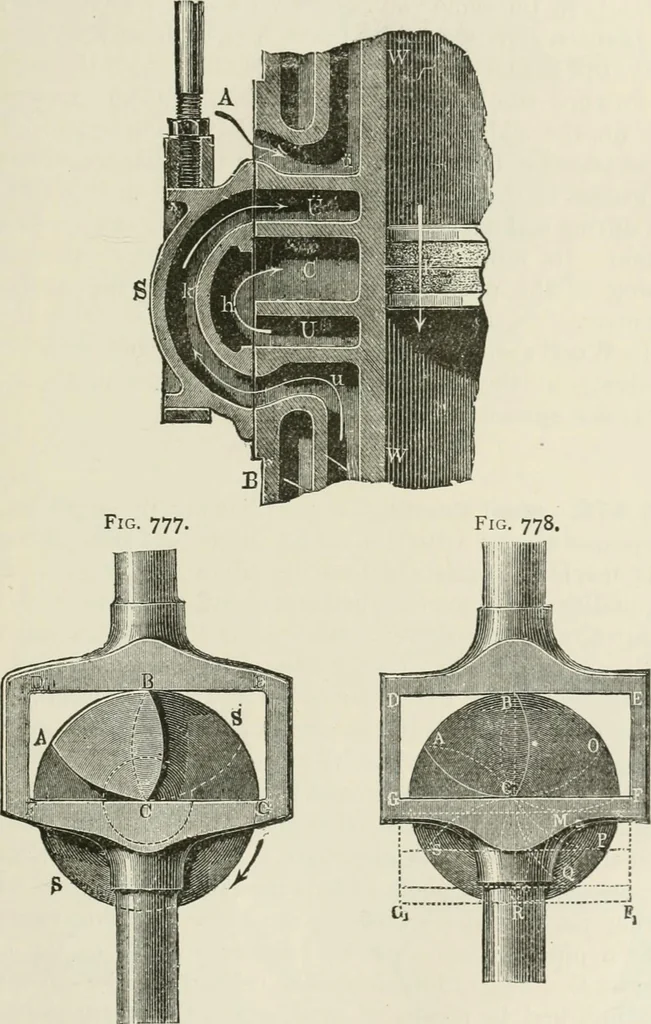

6^, at right angles to the slide rod,and whose distance apart, D F = EG,\s the radius of thebounding arcs or of the disc. Tn the position shown in Fig. 778, the slide has its high-est position, and while now the disc revolves through theangle B C O = 60°, the side A B remains in contact withDE, and… … from C O \.o CP or through another angle of 60°, the pointof contact M passes from C to P. Finally, after another 35^ HEAT, STEAM, AND STEAM EXGIXES [§476. angle of 60° is passed, the forward side CB will pass fromCPto C R, the point B will be at R, and the slide will haveits lowest position. The…
