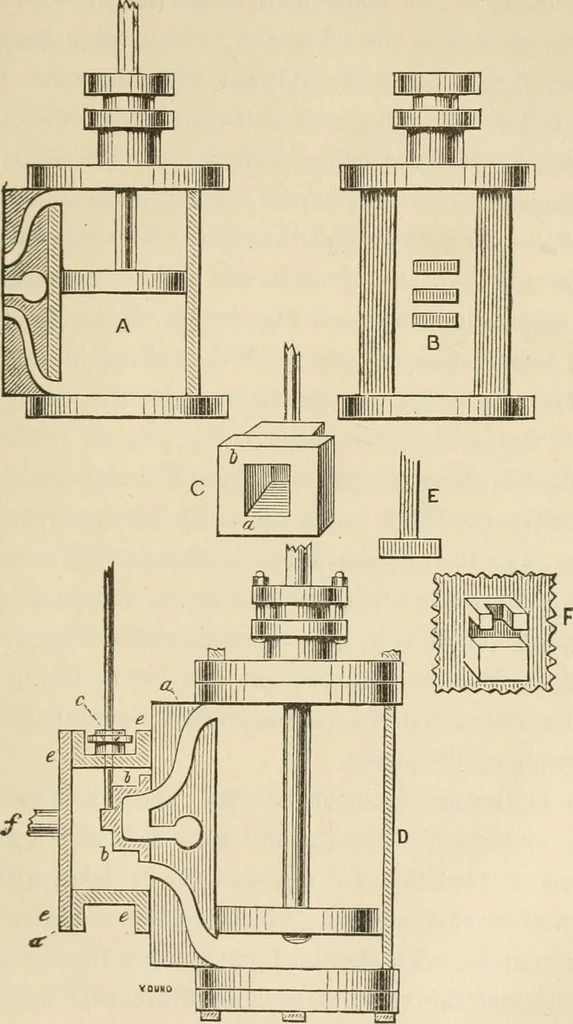

ation with the central one, which is bored straight intothe boss, and generally is tmned at right angles and con-nected with the condenser, or with a pipe opening into thechimney of the engine to increase the draught by means ofthe jets of steam, as is the case always in locomotives, or intothe… … Fij(62. 272 THE YOUNG MECHANIC. proper action of the slide-valve which has to work uponit. This valve is a box of iron, 0, with a wide flange orrim, this flange being of sufficient width to close eitherport. If this valve is placed as it stands when the engineis at rest, h covers the upper steam…
